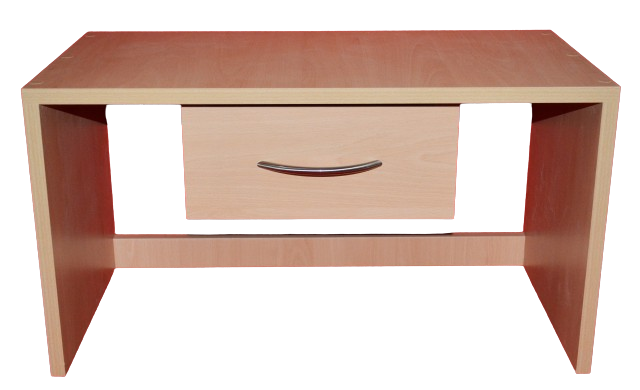

This is our Under Counter Drawer Box with Soft Close Runners. this drawer is perfect to attach under a desk. Fully assembled and ready to fit to your unit.

Full extension runners.

Actual drawer height: drawer box 135mm high & Drawer front 135mm High.

This is just the drawer box, runners & front . The unit the drawer fits in is not included with order. No handle provided

Load capacity 35kg

If you can’t find the size you are looking for we can do bespoke sizes in depth, width & height. this will be priced only on the next size up so no massive expense. For any enquiries please click here

Stated depth of drawer is the depth from front to back of the outer drawer dimension selected. make sure there is at least 10mm tolerance from the depth of your unit to allow drawer to fit without protruding from the unit.

PLEASE SEE TABLE BELOW OF THE STANDARD DRAWER SIZE TO FIT IN UNIT SIZE PROVIDED DRAWER FRONT WILL BE SAME SIZE AS YOUR UNIT SELECTED

 Drawer will come fully assembled & includes:

• 1x pair soft close runners
• 1x drawer base 8mm wood chip melamine couler same as drawer colour selected.
• 4x drawer sides 18mm thick wood chip melamine colour selected for drawer.
• 1x drawer front (same colour as selected)
• 1x bag of screw fixings to attach drawer to unit

It is important that you take the correct measurements to ensure you order the correct drawer boxes. Below is a detailed illustration of how to measure your unit for a prefect fit of the drawer box. This is the same for both kitchen and bedroom drawer boxes.

You can follow this easy to use guide for measuring your drawer box.

Kitchen Drawer Box Step by Step:

1. To start, to find the depth, measure the front to the back of the unit.
2. To find the width, measure the outer to outer of the unit where you want the drawer box to go.
3. To find the height, you will measure your old drawer box.


Bedroom Drawer Boxes Step by Step:

1. To start, to find the depth, measure the front to the back of the unit.
2. To find the width, measure the outer to outer of the unit where you want the drawer box to go.
3. To find the height, you will measure your old drawer box. If, you do not have a drawer box measure the internal height.
