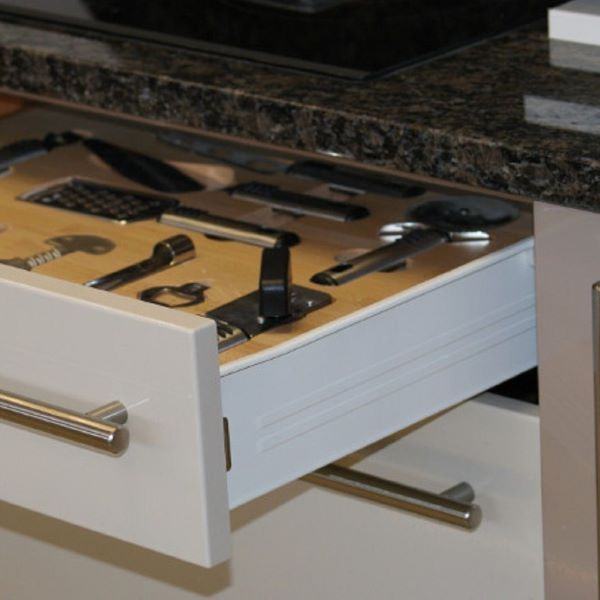

Metal Sided Kitchen Drawer Box. top hang drawer, not soft close with standard runners. This drawer can be used as a replacement or new drawer for a unit. All fixings supplied to attach a drawer front. High quality drawer materials for a long-lasting drawer.

Load capacity 25kg

Top mounted drawer

Not Soft Close!

This is just the drawer box with runners. No drawer front supplied!

Actual height

• 54mm High: Drawer sides + runners outer height 54mm high, height of drawer once fitted in unit including runner 64mm high.
• 90mm High: Drawer sides + runners outer height 90mm high, height of drawer once fitted in unit including runner 100mm high.
• 118mm High: Drawer sides + runners outer height 118mm high, height of drawer once fitted in unit including runner 128mm high.
• 150mm High: Drawer sides + runners outer height 150mm high, height of drawer once fitted in unit including runner 160mm high.
• 200mm High: Drawer sides 150mm High, drawer sides with rail outer height 200mm high, height of drawer once fitted in unit including runner 210mm high.
• 250mm High: Drawer sides 150mm High, drawer sides with rail outer height 250mm high, height of drawer once fitted in unit including runner 260mm high.
• 300mm High: Drawer sides 150mm High, drawer sides with rail outer height 300mm high, height of drawer once fitted in unit including runner 310mm high.

Stated depth of drawer is the depth from front to back of the outer drawer dimension selected. make sure there is at least 10mm tolerance from the depth of your unit to allow drawer to fit without protruding from the unit.

Drawer will come flat packed & includes:

• 1x pair metal drawer sides
• 1x pair runners (not soft close)
• drawer front attachment attached to drawer sides.
• 1x drawer base 18mm thick woodchip melamine.
• 1x drawer back 18mm thick woodchip melamine.
• (1x pair gallery rails for 200mm high, 250mm high & 300mm high only)
• 2x MDF strips depth stated 50mm x 3mm (only to use if unit is 15mm).
• 1x bag of screw fixings to build and attach drawer to unit, including screws to attach a drawer front.
• 1x fitting instructions.

Bespoke sizes available in widths only. For any enquiries please click here

It is important that you take the correct measurements to ensure you order the correct drawer boxes. Below is a detailed illustration of how to measure your unit for a prefect fit of the drawer box. This is the same for both kitchen and bedroom drawer boxes.

You can follow this easy to use guide for measuring your drawer box.

Kitchen Drawer Box Step by Step:

1. To start, to find the depth, measure the front to the back of the unit.
2. To find the width, measure the outer to outer of the unit where you want the drawer box to go.
3. To find the height, you will measure your old drawer box.


Bedroom Drawer Boxes Step by Step:

1. To start, to find the depth, measure the front to the back of the unit.
2. To find the width, measure the outer to outer of the unit where you want the drawer box to go.
3. To find the height, you will measure your old drawer box. If, you do not have a drawer box measure the internal height.
