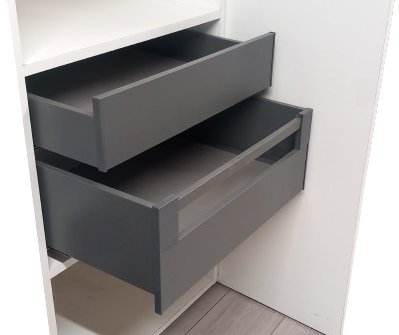

DBT internal Slimline Soft Close Kitchen Drawer Box. This drawer can be used as a drawer to go behind an existing drawer or unit door. High quality drawer materials for a long-lasting drawer.

Load capacity 35kg

Drawer front supplied.

Actual height

125mm high: Drawer sides outer height 88mm high, drawer front 125mm high, drawer once fitted in unit including runner 147mm high.

210mm high: Drawer sides outer height 171mm high, drawer front 210mm high, drawer once fitted in unit including runner 232mm high.

Stated depth of drawer is the depth from front to back of the outer drawer dimension selected. make sure there is at least 10mm tolerance from the depth of your unit to allow drawer to fit without protruding from the unit.

Hinges info:

Selecting hinges means in the unit the drawer is going in has hinges attached to a door. If hinges selected 25mm packers are provided with order. this is so the drawer can be used and not hit or scrape hinge attached to your unit.

Hinges Selection:

• Hinge 1 side = -25mm off drawer width, 1x pair 25mm packers provided.
• Hinge both sides = -50mm off total drawer width and 2x pair packers provided.
• No hinges = drawer will fit normal unit size stated.

Drawer will come flat packed & includes:

• 1x pair DBT Slimline drawer sides left & right 88mm high for 125mm high drawer or 171mm high sides for 210mm high drawer.
• 1x pair runners with soft close built in mechanism.
• 1x drawer base 18mm thick woodchip melamine titanium colour.
• 1x drawer back 18mm thick woodchip melamine titanium colour.
• 1x pair drawer back brackets left & right to attach to drawer sides & back of drawer.
• 2x drawer front connector brackets for 125mm high or 2x pair for 210mm high (to attach to internal drawer front).
• 2x top bracket connector pins for 210mm high only
• 1x drawer front panel 125mm high
• 2x drawer front attachments for drawer front panel 125mm high (for 125mm high only)
• 2x drawer front attachments for drawer front panel 210mm high (for 210mm high only)
• 1x drawer front rail (for 210mm high only)
• 1x pair rectangle drawer screw cover caps labelled DBT.
• 2x MDF strips drawer depth x 50mm x 3mm (only to use if unit is 15mm).
• 1x bag of screw fixings to build and attach drawer to unit.
• 1x Fitting instructions.
• 25mm packers if hing

Bespoke sizes available in widths only. For any enquiries please click here

It is important that you take the correct measurements to ensure you order the correct drawer boxes. Below is a detailed illustration of how to measure your unit for a prefect fit of the drawer box. This is the same for both kitchen and bedroom drawer boxes.

You can follow this easy to use guide for measuring your drawer box.

Kitchen Drawer Box Step by Step:

1. To start, to find the depth, measure the front to the back of the unit.
2. To find the width, measure the outer to outer of the unit where you want the drawer box to go.
3. To find the height, you will measure your old drawer box.


Bedroom Drawer Boxes Step by Step:

1. To start, to find the depth, measure the front to the back of the unit.
2. To find the width, measure the outer to outer of the unit where you want the drawer box to go.
3. To find the height, you will measure your old drawer box. If, you do not have a drawer box measure the internal height.
